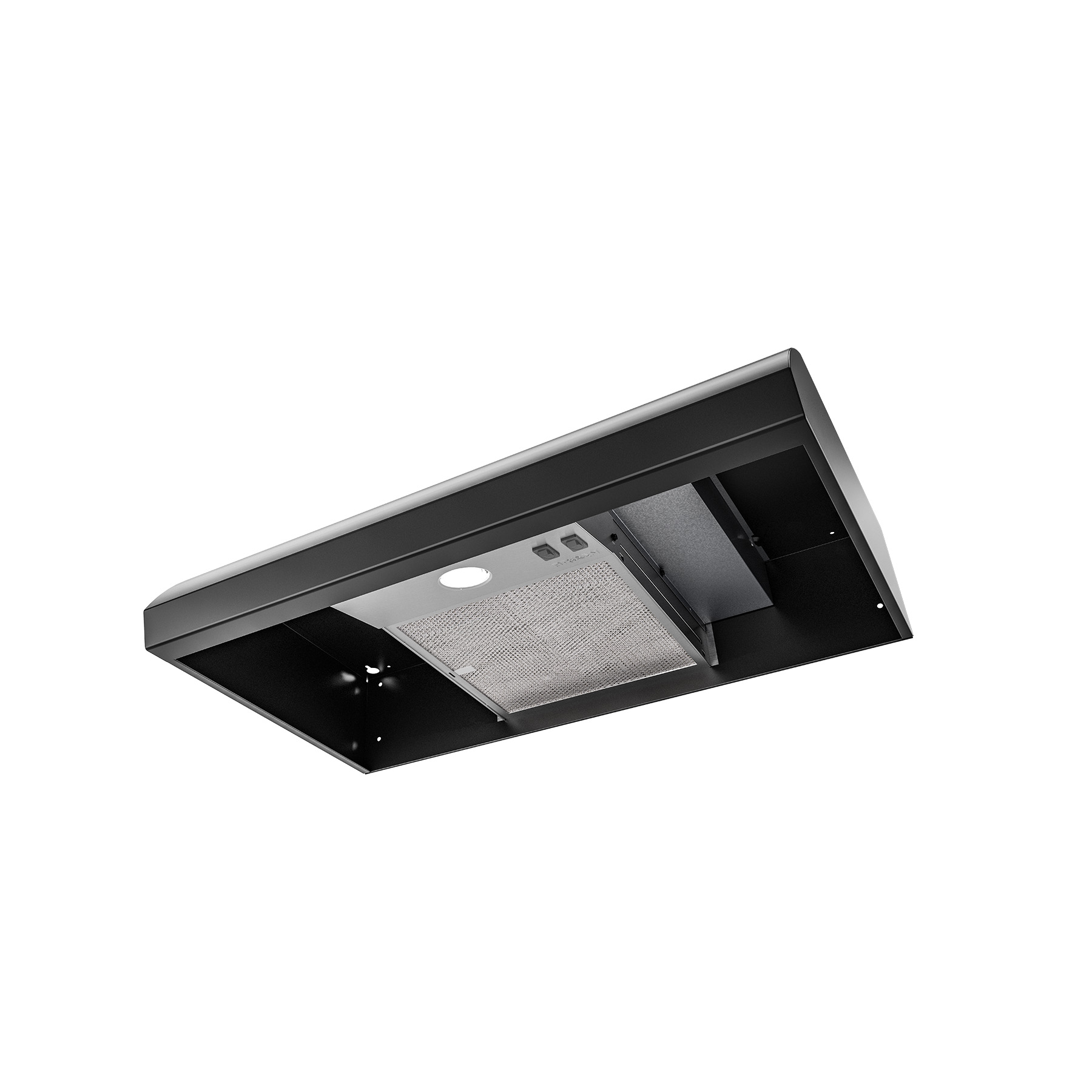

Broan® BXT1 Series Under-Cabinet Range Hood

Broan® 30-Inch 4-Way Convertible Under-Cabinet Range Hood, 270 Max CFM, Black

The BXT1 Series Kitchen Exhaust Ventilation Range Hood offers a transitional style with gently round surfaces that make it a great choice for today’s contemporary kitchens. The clean design uses hidden rocker controls to make operation easy and convenient for any user. The hood includes easy to clean features like a large dishwasher-safe filter, fully integrated light panel and top oriented recirculation louvers. The one-level lighting system includes a bright LED bulb to illuminate the cooktop. Four-Way convertibility provides flexible, easy installation options.


Color Finish


Product Width


Model:

BXT130BL

Features

  • Perfect for replacement as well as new installations, this powerful 4-way convertible range hood will fit into most all applications. The enclosed light and fan/filter assembly makes for easier cleaning
  • The 4-way convertibility of this hood provides flexible installation for use in either ducted or non-ducted applications. Discrete recirculation louvers are hidden at the top of the hood, which helps to provide a smooth, clean appearance
  • With a powerful 2-speed fan offering 270 Max Blower CFM, this range hood provides adequate capture for electric and most gas ranges
  • The 18” deep design provides 20% more coverage over the cooktop than the standard over-the-range microwave combination units
  • One-level lighting system includes a bright LED bulb to illuminate the cooking surface (bulb included)
  • Dishwasher-safe aluminum mesh filter provides highly efficient grease removal
  • ADA compliant, remote operation is possible using a standard UL approved wall switch
  • Optional 7 in. round BP87Q damper sold separately
  • Non-duct capable with use of charcoal filter (HPFX1), sold separately. Hidden ductless louvers on top of hood exhaust away from cabinetry
Use the optional Range Hood Mounting Brackets
NO CABINET TO HANG RANGE HOOD FROM?

Use the optional Range Hood Mounting Brackets

For those kitchens that do not have a cabinet above the range, Broan-NuTone offers the Model 35 Range Hoods Mounting Brackets. They allow you to still hang your Broan-NuTone range hood by mounting these brackets to the wall. For best capture of cooking impurities, your range hood should be mounted 18-24 inches above the cooking surface. Make sure the hood (and brackets) are level.

Learn More
  • Specs
  • Downloads
  • Videos

print

Filter Type Aluminum
Heat Sentry™ No
HVI Certified Yes
Lighting Type LED
UL Listed Yes
ADA Compliance Yes
Damper Included No
ENERGY STAR® certified No
Light Bulbs Included Yes
Light Levels 1
Material Steel
Nightlight Or Nighlight Setting No
Ductless Recirculation Capable Yes
Ductless Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 2
Switch Control Type Rocker
Rated Voltage 120
Boost Mode No
Color Finish
Rated Amps 1.3

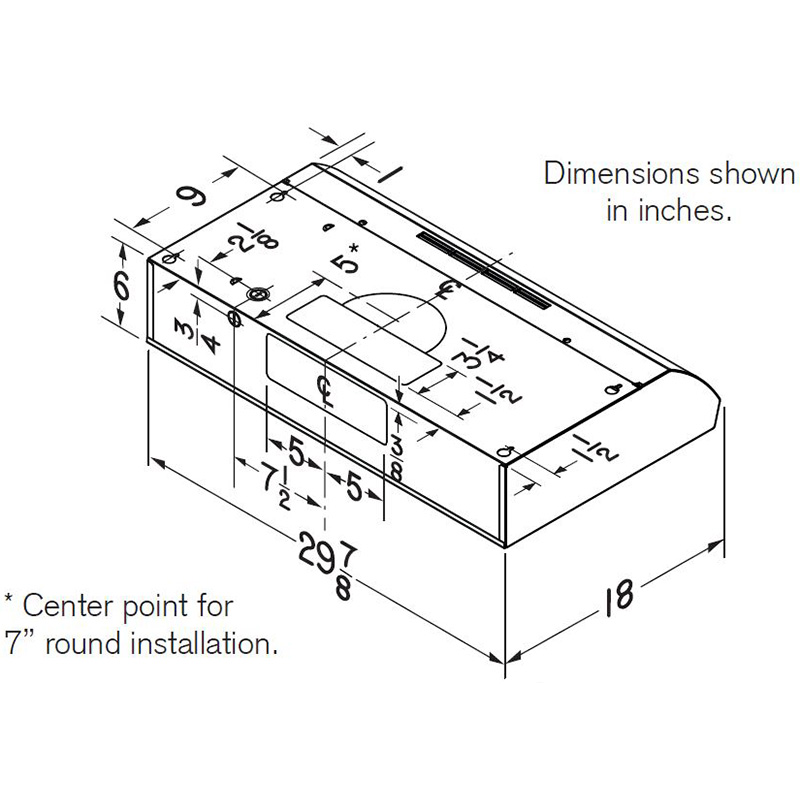

Product Depth 18"
Product Height 6"
Product Width 30"
Built-In Timer No
CFM 270 Max
Diameter 7" Round
Vent Type Convertible Built-In
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) LED
Manufacturer Warranty 1 Year
