NuTone® AR1 Series Under-Cabinet Range Hood
NuTone® 30-Inch 4-Way Convertible Under-Cabinet Range Hood, 220 CFM, Black
The AR1 Series Kitchen Exhaust Ventilation Range Hood offers a transitional style with gently round surfaces that make it a great choice for today’s contemporary kitchens. The clean design uses up-front rotary controls to make operation easy and convenient for any user. The hood includes easy to clean features like a large dishwasher-safe filter, fully integrated light panel and top oriented recirculation louvers. The one-level lighting system is designed to allow for either LED or Halogen bulb up to 50 watts. Four-Way convertibility provides flexible, easy installation options.
Product Width
Model:
AR130BL
Features
- Perfect for replacement as well as new installations, this powerful 4-way convertible range hood will fit into most all applications. The enclosed light and fan/filter assembly makes for easier cleaning
- The 4-way convertibility of this hood provides flexible installation for use in either ducted or non-ducted applications. Discrete recirculation louvers are hidden at the top of the hood, which helps to provide a smooth, clean appearance
- With a powerful 220 CFM, 2-speed fan, this range hood provides adequate capture for electric and most gas ranges
- The 18” deep design provides 20% more coverage over the cooktop than the standard over-the-range microwave combination units
- A specially designed lighting system allows the use of either a LED or halogen bulb up to 50 watts (bulb not provided)
- Dishwasher-safe aluminum mesh filter (S99010467) provides highly efficient grease removal
- ADA compliant, remote operation is possible using a standard UL approved wall switch
- Optional 7 in. round BP87Q damper sold separately
- Non-duct capable with use of charcoal filter (S97021380), sold separately. Hidden ductless louvers on top of hood exhaust away from cabinetry
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
NO CABINET TO HANG RANGE HOOD FROM?
Use the optional Range Hood Mounting Brackets
For those kitchens that do not have a cabinet above the range, Broan-NuTone offers the Model 35 Range Hood Mounting Brackets. They allow you to still hang your Broan-NuTone range hood by mounting these brackets to the wall. For best capture of cooking impurities, your range hood should be mounted 18-24 inches above the cooking surface. Make sure the hood (and brackets) are level.
Learn More- Specs
- Downloads
| Filter Type | Aluminum |
|---|---|
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED or Halogen |
| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 50 |
| Light Bulbs Included | No |
| Light Levels | 1 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Rotary |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | United States |
| Color Finish |
|
| Rated Amps | 1.3 |

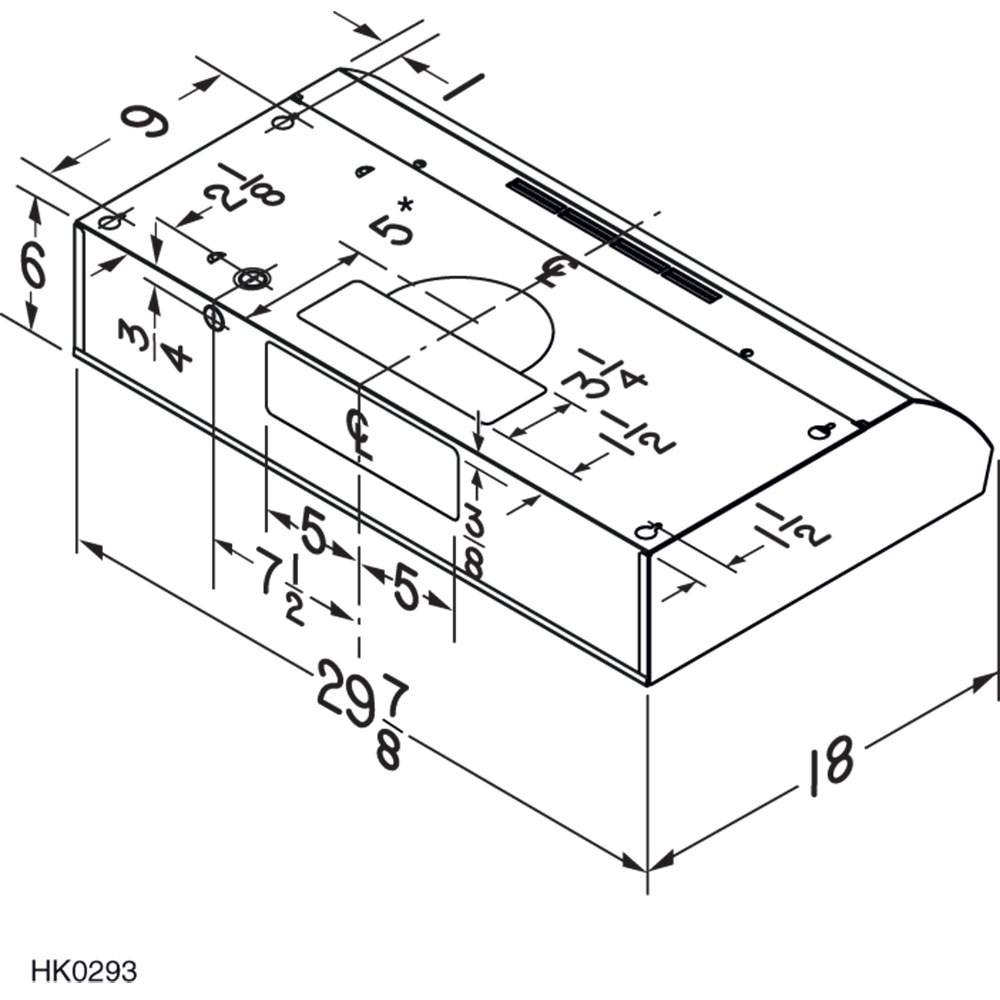

| Product Depth | 18" |
| Product Height | 6" |
| Product Width | 30" |
| Built-In Timer | No |
| CFM | 220 |
| Diameter | 7" Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | GU10 or LED |
| Manufacturer Warranty | 1 Year |
