Whole-Home Series

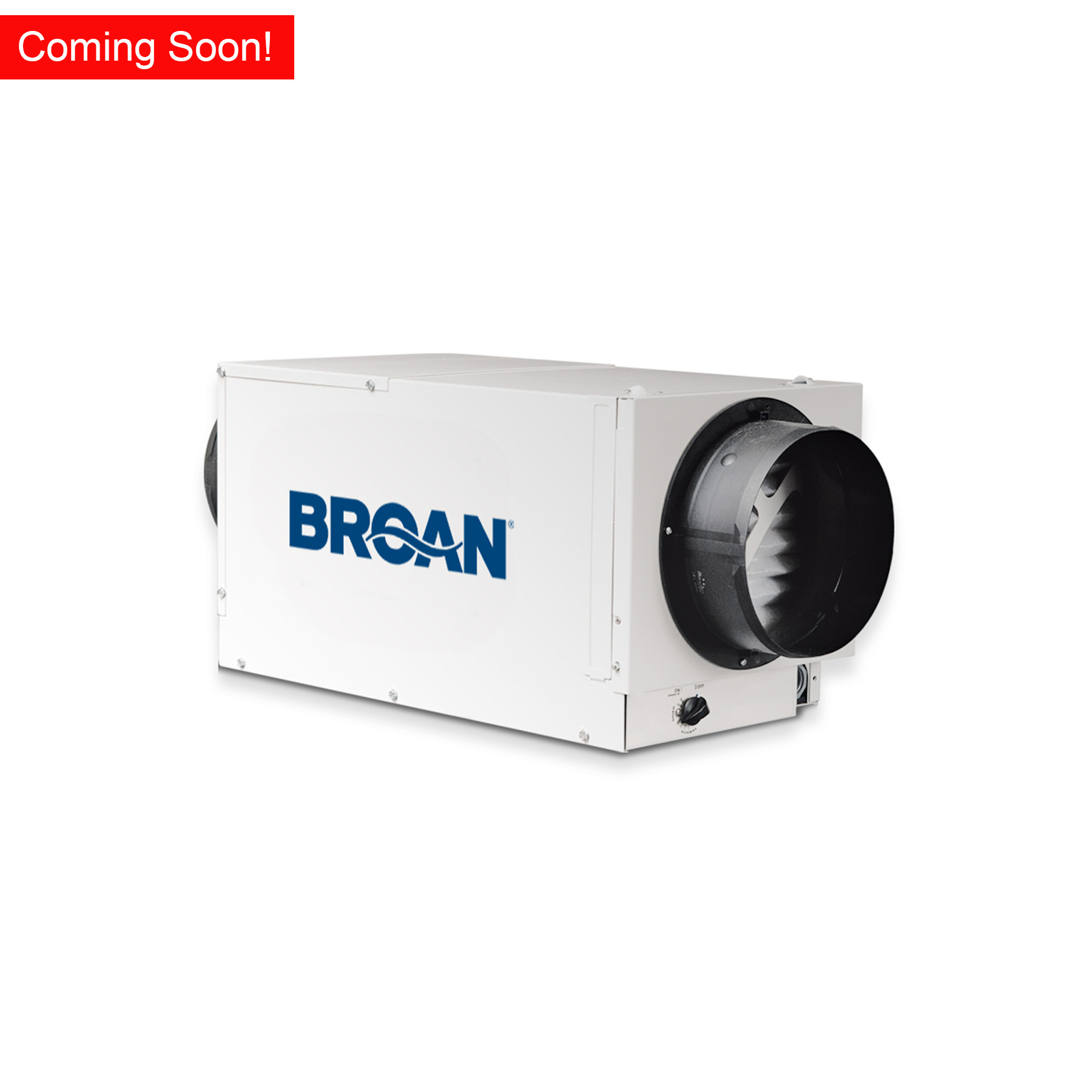

Broan® 70 Pint Dehumidifier

The Broan® 70 Pint Dehumidifier's compact design and horizontal or vertical discharge make it a great fit in tight, low-clearance applications where moisture control is needed. The standard MERV 13 filter delivers superior air filtration, providing air that is both fresh and has the right humidity level to the space.




  • Removes up to 70 pints of water per day
  • Provides up to 1,800 sq. ft of coverage making it the perfect fit for basements, crawl spaces, and smaller homes
  • Compact footprint allows unit to be placed in tight, low-clearance applications
  • MERV 13 filtration installed standard to provide superior air filtration
  • Discharge duct can be installed in either a horizontal or vertical orientation providing additional install flexibility
  • External fresh outdoor air duct can be added to unit ducting to provide fresh filtered air to the space
  • The integrated humidity setting dial can be set to control the RH level within the surrounding air space the unit is installed
Fresh Air + Dehumidification

Bring fresh, filtered air into the home while removing excess moisture from the indoor air by combining the Broan FIN-6MD motorized supply damper with any of our ducted whole-home dehumidifiers. This unique solution reduces the overall energy usage to provide the fresh ventilation air by utilizing the dehumidifier fan in place of the air handler central fan while still allowing the dehumidifier compressor to run only when dehumidification is needed in the home.

Learn More About Fresh Air
  • Specs
  • Downloads


Water Removal Capacity @ 80F & 60% RH (pints/day) 70
Efficiency (pints/kWh) 5
Energy Factor (liters/kWh) 2.4
Power (Watts) @ 80°F & 60% RH 580
Airflow (CFM) @ 0.0 in. WG 150
Airflow (CFM) @ 0.2 in. WG 140
Airflow (CFM) @ 0.4 in. WG 130
Filtration MERV 13
Optional Fresh Air Duct N/A
Inlet Duct Size 8" Round
Outlet Duct Size 8" Round
Operating Current (Amps) 5.1
Power Cord 9' Type B Plug
Integrated Circuit Breaker Yes
Refrigerant Type R410A
Refrigerant Qty (oz.) 15
Drain Connection 3/4" Threaded Female NPT
Coverage (sq. ft) 1800
Product Weight (Lbs) 55
Manufacturer Warranty 6 Year
Product Dimensions 12”W x 12”H x 28”D
Controls DEH 3000 / DEH 3000 R
