Whole-Home Series

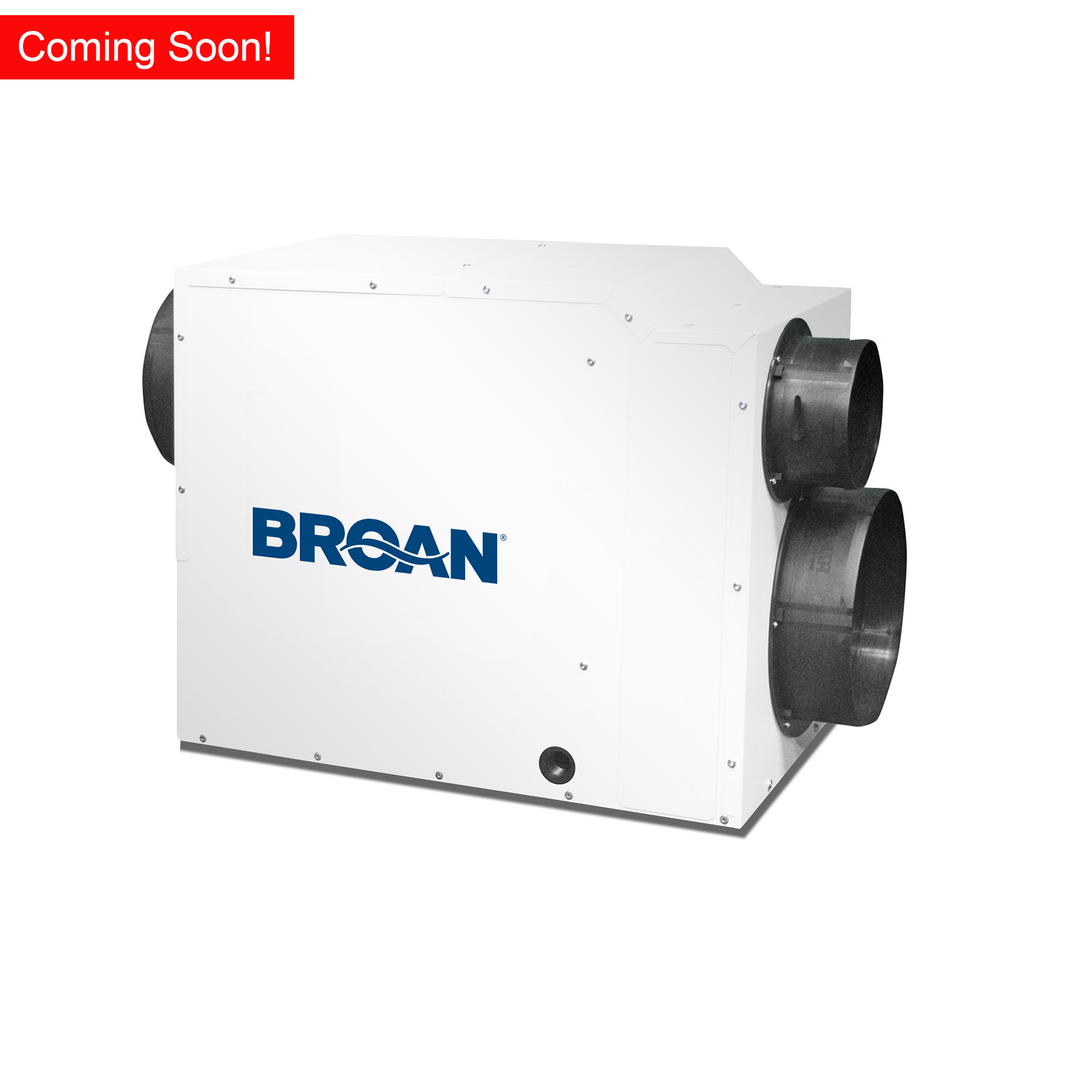

Broan® 120 Pint Dehumidifier

The Broan® 120 Pint Dehumidifier delivers superior indoor air quality with it's MERV 13 filtration and dedicated humidity control. With a 120 pints per day removal capacity this unit is well suited for medium to larger homes. The system design provides excellent energy efficiency to provide humidity control for large spaces.




  • Removes up to 120 pints of water per day
  • Provides up to 3,000 sq. ft. of coverage to provide humidity control to larger homes
  • MERV 13 filtration installed standard to provide superior air filtration
  • Discharge duct can be installed in either a horizontal or vertical orientation providing additional install flexibility
  • Humidity control be done easily using either our DEH 3000 digital controller that is mounted in the interior space or with the DEH 3000 R digital controller with its remote sensor that is mounted in the interior space where the humidity level needs to be managed
  • Included fresh air inlet provides the option for fresh outdoor air to be ducted to the unit
Fresh Air + Dehumidification

Bring fresh, filtered air into the home while removing excess moisture from the indoor air by combining the Broan FIN-6MD motorized supply damper with any of our ducted whole-home dehumidifiers. This unique solution reduces the overall energy usage to provide the fresh ventilation air by utilizing the dehumidifier fan in place of the air handler central fan while still allowing the dehumidifier compressor to run only when dehumidification is needed in the home.

Learn More About Fresh Air
  • Specs
  • Downloads


Water Removal Capacity @ 80F & 60% RH (pints/day) 121
Efficiency (pints/kWh) 6.1
Energy Factor (liters/kWh) 2.9
Power (Watts) @ 80°F & 60% RH 840
Airflow (CFM) @ 0.0 in. WG 350
Airflow (CFM) @ 0.2 in. WG 285
Airflow (CFM) @ 0.4 in. WG 210
Filtration MERV 13
Optional Fresh Air Duct 6" Round
Inlet Duct Size 10" Round
Outlet Duct Size 10" Round
Operating Current (Amps) 7.3
Power Cord 9' Type B Plug
Integrated Circuit Breaker Yes
Refrigerant Type R410A
Refrigerant Qty (oz.) 26
Drain Connection 3/4" Threaded Female NPT
Coverage (sq. ft) 3000
Product Weight (Lbs) 91
Manufacturer Warranty 6 Year
Product Dimensions 14.375”W x 21”H x 32.1875”D
Controls DEH 3000 / DEH 3000R
