BROAN 9810 and 9815 Series
Broan® Wall Heater, High-Capacity, 1500W Heater, 120/240V

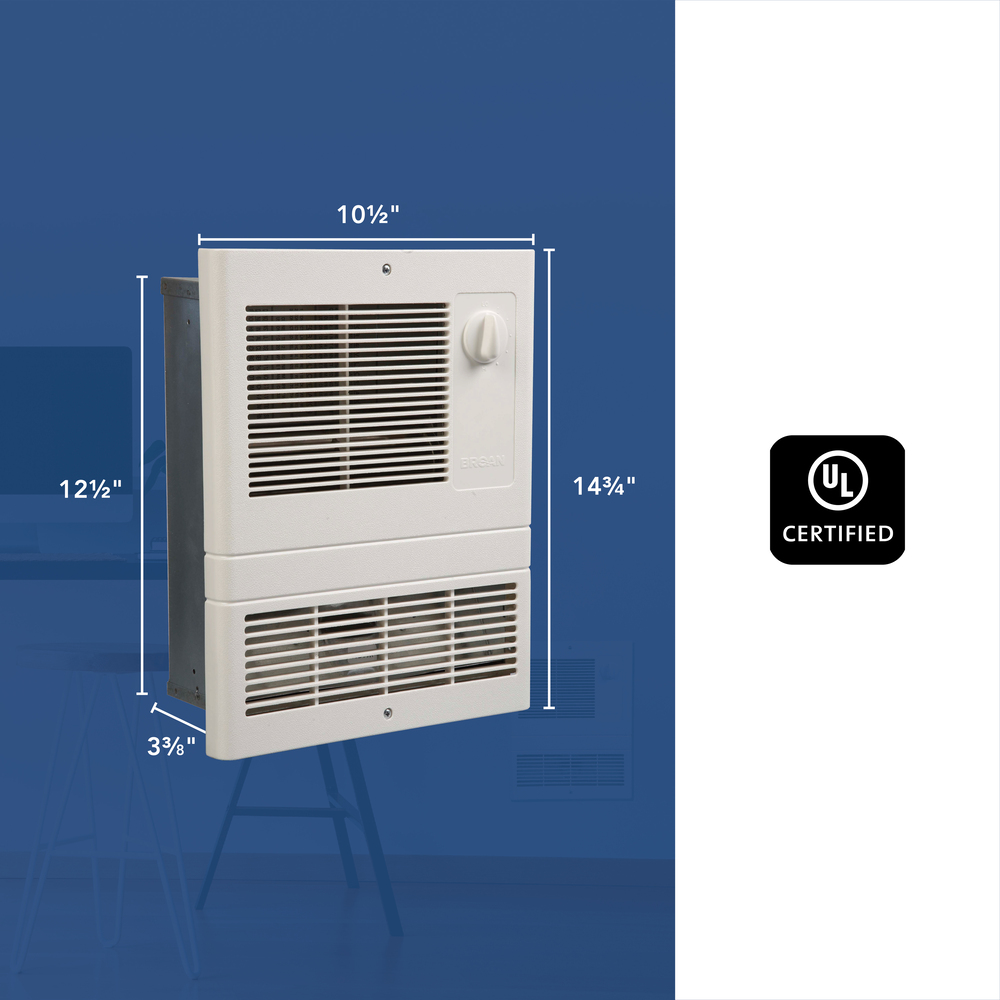

The Broan 10-1/2 in. x 12-1/2 in. 1,500-Watt White Fan-Forced Wall Heater is a large-capacity unit ideal for high heat-loss areas like lobbies, entrance ways and vestibules. This wall heater features a built-in, adjustable thermostat to help you control the temperature of a specific area. This wall heater wires easily to accommodate installation for 120 or 240-volt applications.
Model:
9815WH
Features
- 1,500-watt heater at 120 or 240 volts creates heat to warm lobbies, hallways, entrance ways or vestibules
- Built-in, adjustable thermostat for convenient temperature control with quiet thermal-protected motor
- UL listed
- Please refer to Installation Guide for proper wiring connections for 120V or 240V operation
- Heater is permanently lubricated and never needs oiling or disassembly
- Specs
- Downloads
| Auto Shut-off | Yes |
|---|---|
| cUL Listed | No |
| Heater Type | Fan-Forced Wall |
| Number Of Heat Settings | Variable (Infinite) |
| Project Pack | No |
| Thermostat | Yes |
| UL Listed | Yes |
| Coverage Area (sq ft) | 100-150 |
| BTU/hr at 120 Volts | 5120 |
| BTU/hr at 208 Volts | 0 |
| BTU/hr at 240 Volts | 5120 |
| Color Finish |
|

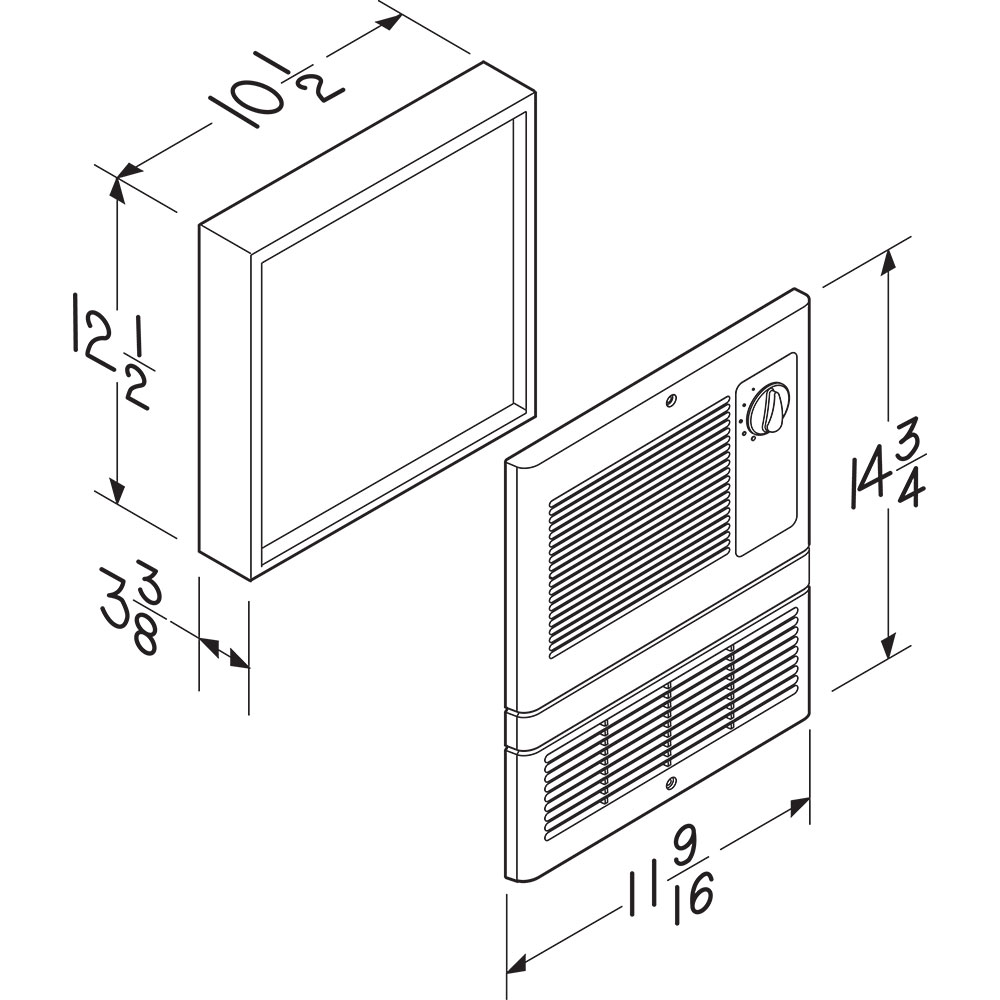

| Grille Dimensions - Width | 11.5625 |
| Housing Length/Depth | 3.375 |
| Watts And Amps At 120 Volts | 13 |
| Watts And Amps At 240 Volts | 6.5 |
| Watts at 120 VAC | 1500 |
| Watts at 240 VAC | 1500 |
| Manufacturer Warranty | 1 Year |
