120V Powered Attic Ventilators

Broan 35316 Powered Attic and Garage Ventilation Fan, 1160 or 1600 CFM, Gable Mounted

Prevent heat and moisture build-up with the Broan® 35316 Powered Attic and Garage Ventilation Fan. Attics can reach over 150°F in summer, warming your living area, increasing the air-conditioning load and your energy bill. In winter, ice dams can form, and moist air can condense causing mildew, rotting wood and wet insulation. Year-round attic ventilation ensures a cooler, drier attic which can extend the life of your roof and air conditioner, while lowering air conditioning expense.

Besides the attic, this ventilation fan is also designed for one, two, and three car garages. Say goodbye to unbearable heat, humidity and unwanted smells that accumulate in the garage. (Wall cap / shutter not included.)


Model:

35316

Features

  • Prevent heat and moisture build-up for a cooler, drier attic which can extend the life of your roof and air conditioner, while lowering air conditioning expense
  • Lowers temperature of home in the summer
  • Fight heat, humidity buildup and unwanted smells inside the garage
  • Effectively ventilate a one, two or three car garage, either attached or detached from the home
  • Precision balanced 14" metal blade for maximum air flow
  • To attain optimum efficiency and performance, combine with automatic shutter (Broan model 433, sold separately) for 1600 CFM
  • Built-in adjustable thermostat for automatic operation at your chosen temperature level
  • Galvanized steel housing for added strength
  • Tested and approved for extreme hot and cold weather
  • Specs
  • Downloads

print

Automatic Shutoff No
Built-In Timer No
cUL Listed No
ENERGY STAR® certified No
ETL Listed No
Fan Blade 4 Blade Steel
HVI Certified No
Insect/Critter Screen No
Installation Type Gable
RPM 1420
UL Listed No
CFM 1160 / 1600
Power Type 120 VAC
Sound Level (Sones) 0

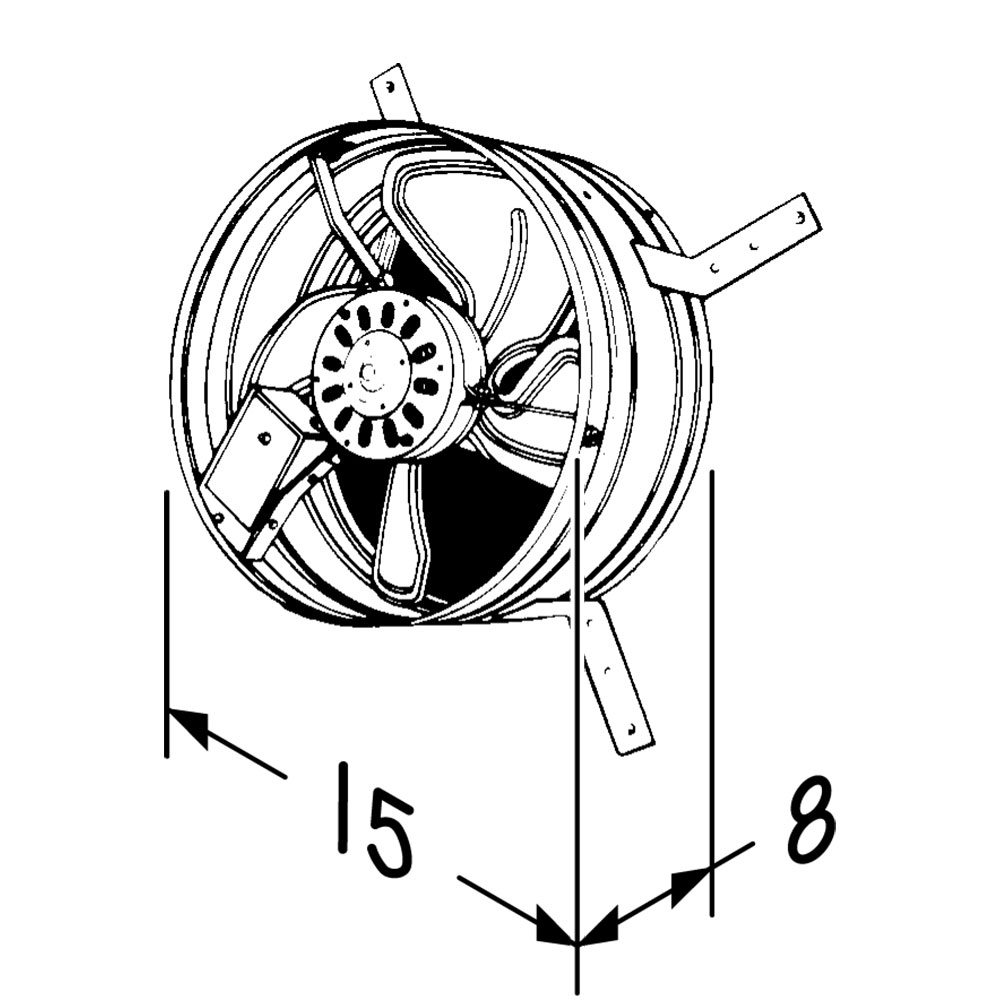

Housing Dimensions 15" Diameter x 8"
Motor Shaded Pole
Manufacturer Warranty 1 Year
Motor Engineered For Continuous Operation No
High Efficiency Luminaire No
