Surface Mount Solar Powered Attic Ventilators

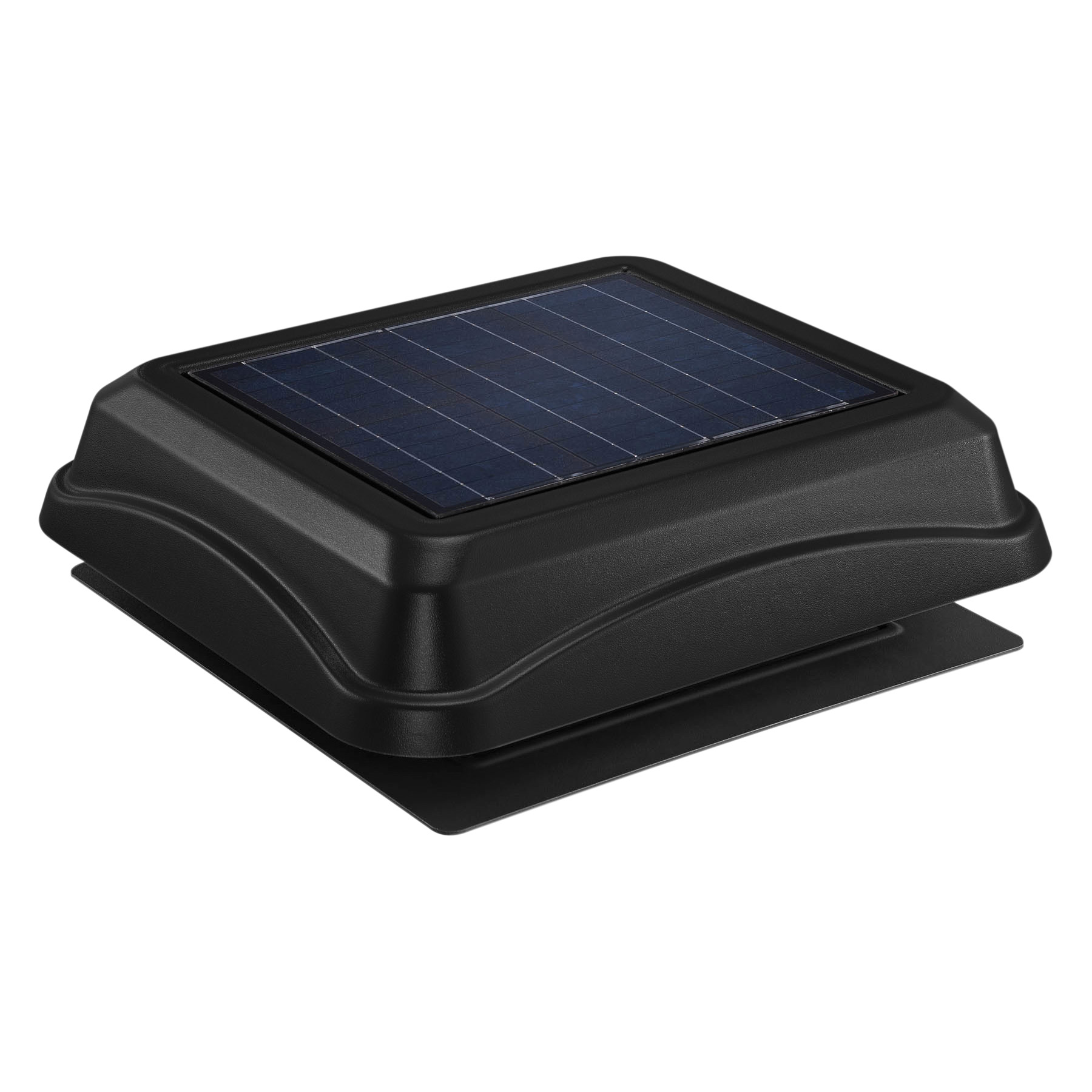

Broan 537 CFM Solar Powered Attic Ventilator, Surface Mount, Black
Broan Solar Powered Attic Ventilators use energy from the sun to operate and require no additional electricity, which means you save up to $180 per year that you might pay to operate an electric powered attic ventilator, depending on your local electric rates, size of attic, climate, etc... Plus, you can save even more with a 30% Federal Tax Credit on both the purchase price and installation costs of your Solar Powered Attic Ventilation. Because Broan Solar Powered Attic Ventilators operate without fuel, waste, or pollution, they earn points towards Green building. So you can save money on electricity without using any to do it, which is green for the environment, and puts some extra green in your wallet. For most roofs, our one piece Solar Powered Attic Ventilator is the perfect solution. Because our solar cells are highly efficient at capturing the sun’s energy, there is no need for unsightly raised panels or tracking systems. Instead, what you see is a low profile ventilator in a contoured design that integrates well with the roof.
Model:
345SOBK
Features
- 28-watt solar panel captures sunlight from dawn to dusk and efficiently converts it into electric power to keep your attic cool and dry all day long, providing 537 Maximum CFM and year round protection for the structure of your home
- 12” diameter, one-piece aluminum 5-blade fan is pitched for maximum air flow to keep your living area cooler, extend the life of your air conditioner and save energy and money
- Compact base footprint means fewer shingles to cut for easier, faster installation
- Low profile, integrated design for an attractive, unobtrusive addition to your roof without the need for props or pivoting stands used by some manufacturers
- Rugged, tempered glass solar panel withstands large hail and won’t delaminate so you can be confident in its reliability, functionality and attractive appearance
- Housing is a molded design of UV-stabilized, color-dyed, rugged ABS plastic that withstands hail and resists fading to remain attractive for years; may also be painted to match your roof color
- Housing frame features positive stops to “seat” the dome for fast, easy installation
- Direct-current, variable voltage motor is dynamically balanced for superior performance and silent operation for years of worry-free operation
- Includes stainless steel fasteners and galvanized steel brackets for durability and corrosion resistance, and aluminum, heavy-gauge screen to keep out insects, animals or birds without impeding airflow
- Optional thermostat is easy to install and disables the motor when the temperature dips below 50-degrees, to extend motor life; recommended for climates where cold weather condensation isn’t a concern
- Aluminum screen provides protection from animals without impeding airflow
- Specs
- Downloads
- Videos
Automatic Shutoff | No |
---|---|
Built-In Timer | No |
cUL Listed | No |
Dome Material | ABS |
ENERGY STAR® certified | No |
ETL Listed | No |
Fan Blade | 5 Blade Aluminum |
HVI Certified | No |
Insect/Critter Screen | Yes |
Installation Type | Surface Mount |
UL Listed | No |
CFM | 537 |
Color |
|
Dome Dimensions | 26-5/8" x 29-7/8" |
Dome Height From Roof | 9 |
Power Type | Solar |
Roof Opening - Width | 14" Diameter |
Solar Panel Makeup | Polycrystalline Silicon |
Solar Panel Watts | 28 |
Sound Level (Sones) | 0 |
Housing Dimensions | 25-1/2" x 25-1/2" |
Motor | DC Variable Voltage |
Manufacturer Warranty | 1 Year |
Motor Engineered For Continuous Operation | No |
High Efficiency Luminaire | No |
