Broan® EDGE
Broan® EDGE Energy Recovery Ventilator (ERV), Power Cord
With its uncompromising performance in any climate and compact footprint, the Broan EDGE provides versatility during the design and installation process while delivering superior air quality in a low-profile design. Featuring the quickest installation in its category, saving the installer up to 20 minutes per unit, thanks to the auto-balancing and self-adjusting VIRTUO™ Technology. The airflow configuration can be swapped with the flip of an integrated selection switch, eliminating the need to specify different models to accommodate mirrored floor plans and providing simplicity throughout the design and installation processes. The integrated LCD screen provides intuitive CFM selection in 1 CFM increments throughout the airflow range, providing real-time CFM and watt usage values. Horizontal and vertical mounting options provide location flexibility to accommodate various application needs.
Power Type
- Hardwired
- Power Cord
Min/max continuous airflow (CFM at 0.2 in. w.g.)
- 30-125
- 30-131
Model:
BLP120E80NS-PC
Features
- Performance guaranteed from installation to inspection with TrueCFM™
- Once balanced. Always balanced. EDGE uses our proprietary VIRTUO™ Technology to continually self-adjust and remain in balance
- Airflow configuration can be swapped with the flip of an integrated selection switch**, eliminating the need for specifying different models to accommodate mirrored floor plans and providing simplicity throughout the design and installation processes **patent pending

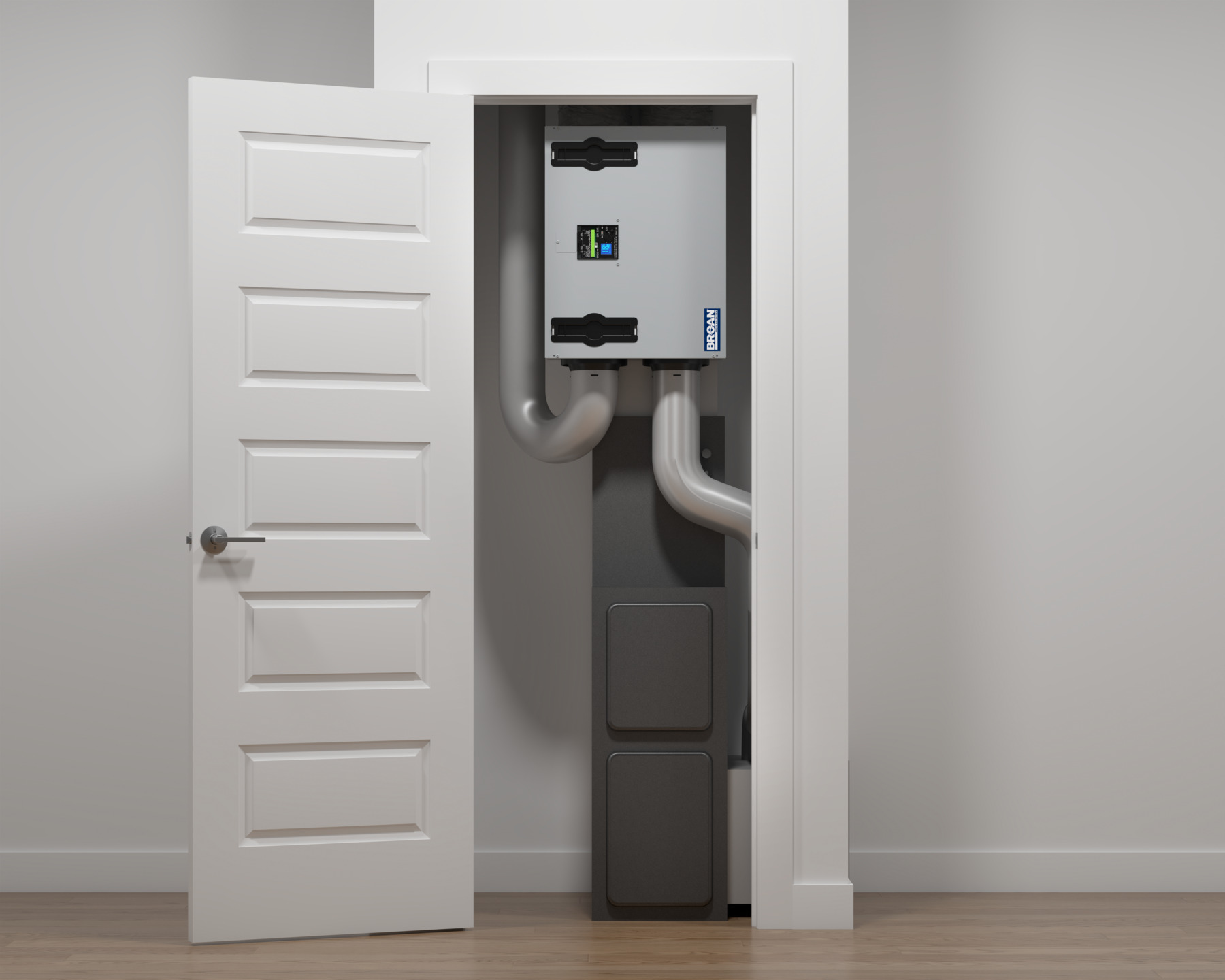

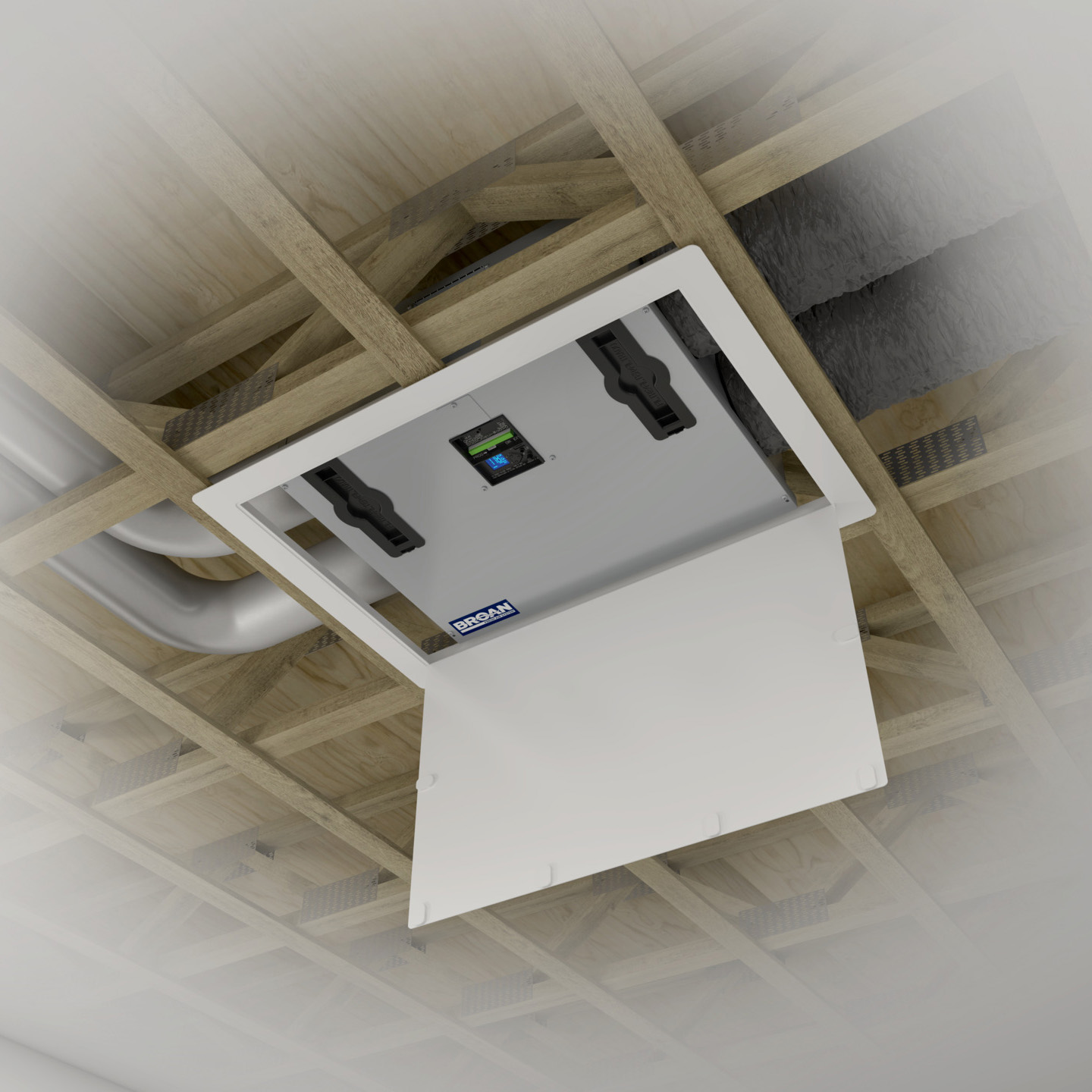

- Horizontal and vertical mounting options provide location flexibility to accommodate various application needs.
- Quickest installation in its category saving the installer up to 20 minutes per unit, thanks to the auto-balancing and self-adjusting VIRTUO™ Technology
- Developed to perform in the harshest of climate conditions
- Easy to access filter maintenance without having to open the door
- Equipped with powerful and energy efficient ECM PMSM motors delivering up to 125 CFM @ 0.2" w.g.

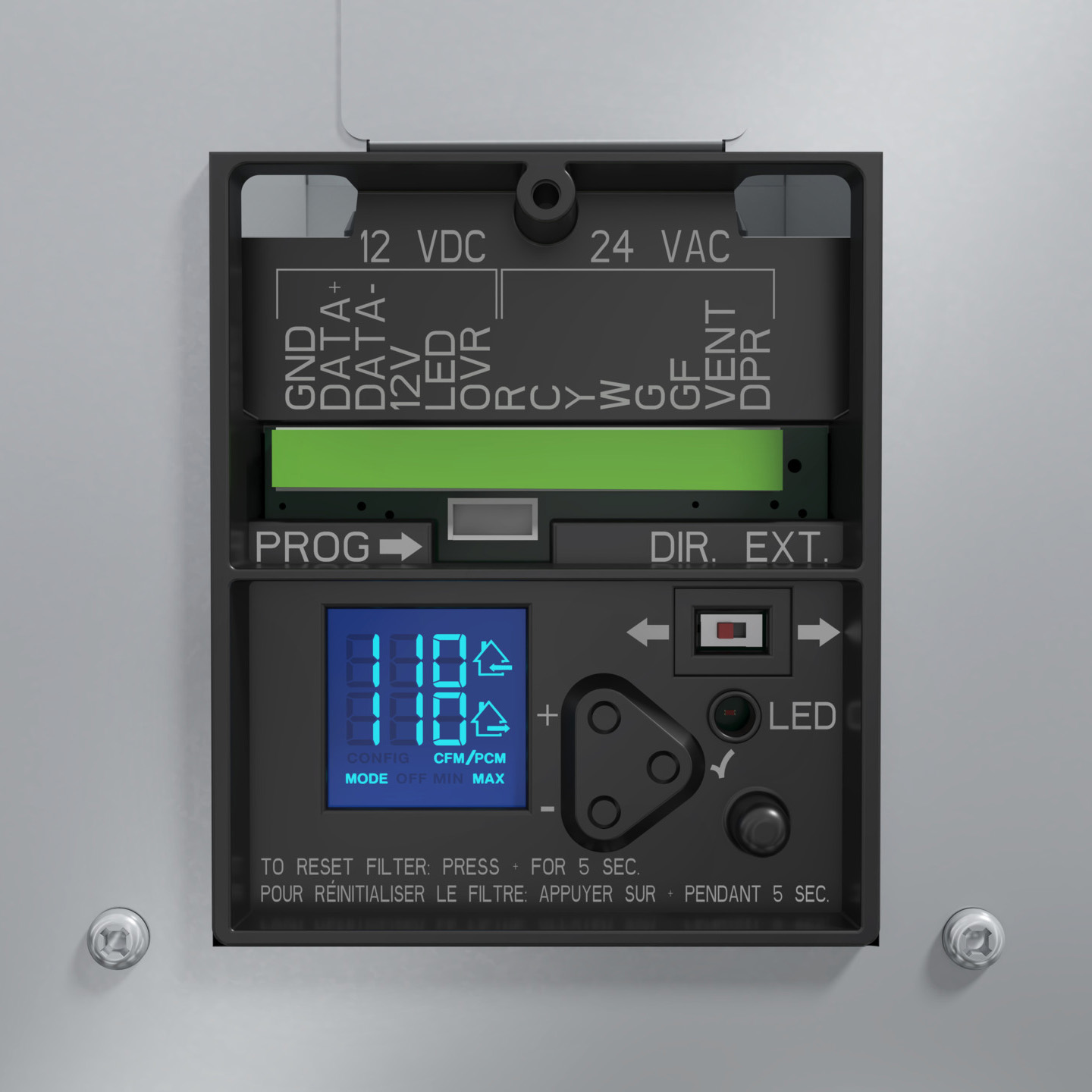

- Integrated LCD screen provides intuitive CFM selection in 1 CFM increments throughout the airflow range providing real-time CFM and watt usage values
- Compatible with a wide range of modern and user friendly controls to meet specific needs and different applications
| Voltage | 120 |
|---|---|
| Min/max continuous airflow (CFM at 0.2 in. w.g.) | 30-125 |
| Sensible recovery efficiency at 32°F | 80% |
| Sensible recovery efficiency at -13°F | 55% |
| Apparent sensible efficiency at 32°F | 84% |
| Product Height | 9.88 |
| Product Width | 18.63 |
| Product Length | 28.13 |
| Product Weight (Lbs) | 34 |
| Ports Location | Side |
| Ports Size | 4" Round |
| Core Type | ERV |
| Defrost Type | Exhaust |
| Filtration Level | Washable 20 PPI |
| ENERGY STAR® certified | No |
| HVI Certified | Yes |
| cUL Listed | Yes |
| UL Listed | Yes |
| Core Warranty | 5 years |
| Parts Warranty | 5 years |
| Power Type | Power Cord |
